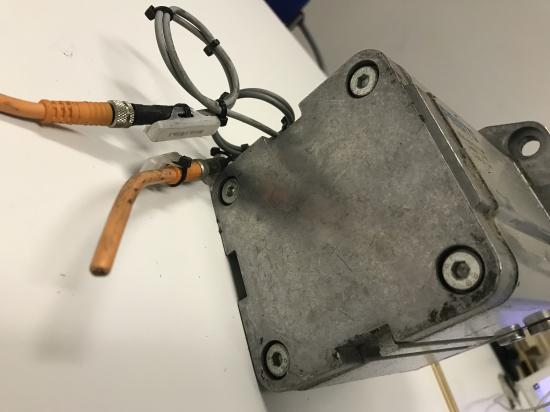

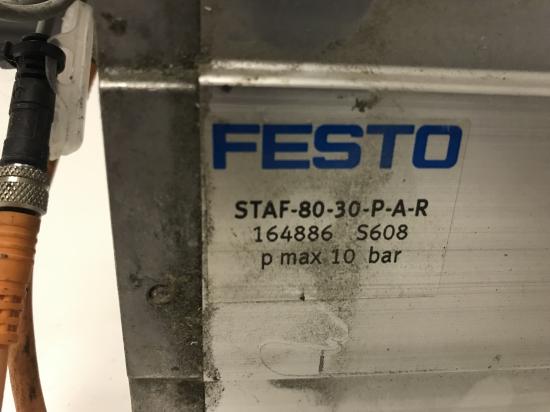

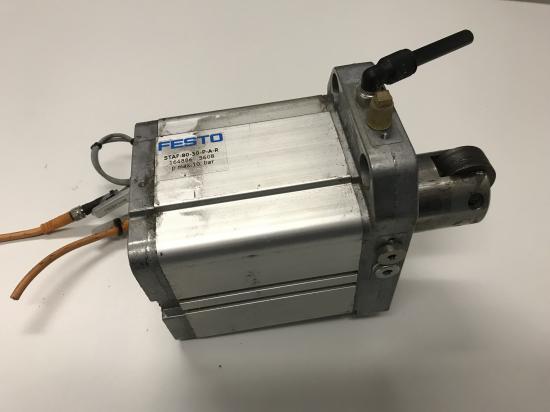

Piston neumatico Festo STAF-80-30-p-a-r
164886 S608
p max 10 bar
Stroke 30 mm
Piston diameter: 80 mm
Dampening: P: Elastic silencer rings / plates double-sided
installation position: arbitrary
Principle of operation: single action Pulling

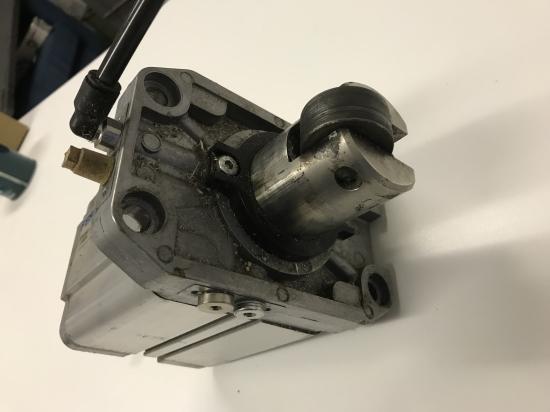

Construction set up: Piston Piston rod with roller
Position detection: For proximity switch
Variants: One-sided piston rod
Anti-twist lock / guide: Flattened piston rod
Operating pressure: 1 to 10bar
Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistant class KBK: 2 - moderate corrosion stress
ambient temperature: 0 to 60ºC
Impact strength: 14.600N
Fastening type With throughway bores
Pneumatic connection: G1/8
Material information: Copper and PTFE-free
Werkstoff Deckel: Aluminium
Werkstoff Dichtungen: NBR
Housing material: Aluminium
Werkstoff Rolle: Steel
Permitted shear force during switching process: 4.500N
Caja 80-4
Cantidad disponible 2 unidades
IVA y transporte no incluidos
